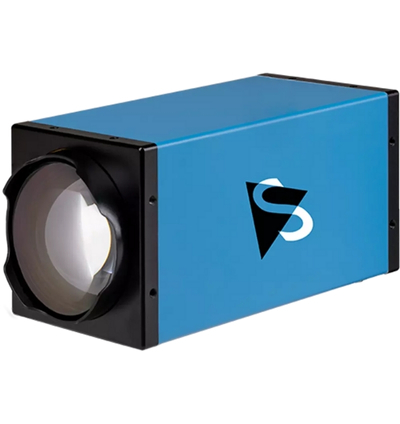

The Imaging Source DMK 39GR0522-Z12 Camera

This compact Z Series monochrome zoom camera uses GigE with PoE and the onsemi AR0522 rolling-shutter sensor to capture 5 MP at up to 22 fps. An integrated motorized zoom lens ranges from 5.1 mm to 57.3 mm for wide to tele coverage, with automatic or manual focus and iris to adapt to scene changes. Trigger and I/O inputs support controlled acquisition, while the 50×50×105 mm housing fits space-constrained enclosures for machine vision and situational monitoring.

TECHNICAL INFORMATION:

• Vision Standard: GigE Vision
• Dynamic Range: 12 bit
• Resolution: 2,592×1,944 (5 MP)
• Frame Rate: 22 fps
• Video Output Format: 8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome
• Interface (Optical)
• IR-Cut Filter (removable)
• Sensor Type: CMOS
• Sensor Specification: onsemi AR0522
• Shutter: Rolling
• Format: 1/2.5 inch
• Pixel Size: H: 2.2 µm, V: 2.2 µm
• Focal Length: 5.1 mm (wide) to 57.3 mm (tele)
• F-Stop: 1.6 (wide) to 2.8 (tele)
• MOD: 1 cm (wide) to 50 cm (tele)
• Focus: Automatic and Manual
• Iris: Automatic and Manual
• Lens: Integrated
