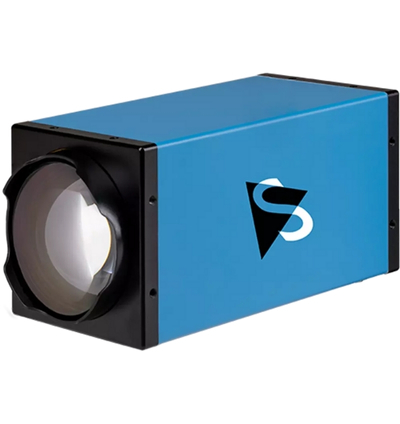

The Imaging Source DMK 39GX265-Z20 Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
This Z Series monochrome zoom camera combines GigE with PoE and the Sony IMX265 Pregius global-shutter sensor to deliver 3.1 MP at up to 36 fps. Its integrated 20x motorized zoom lens (6.8 mm to 136 mm) covers wide to tele views, while automatic or manual focus and iris simplify setup across changing scenes. Trigger and I/O inputs support deterministic timing, and the 71×71×147 mm housing streamlines installation in industrial monitoring and inspection systems.
TECHNICAL INFORMATION:
- Vision Standard: GigE Vision
- Dynamic Range: 12 bit
- Resolution: 2,048×1,536 (3.1 MP)
- Frame Rate: 36 fps
- Video Output Format: 8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome
- Interface (Optical)
- IR-Cut Filter (removable)
- Sensor Type: CMOS Pregius
- Sensor Specification: Sony IMX265
- Shutter: Global
- Format: 1/1.8 inch
- Pixel Size: H: 3.45 µm, V: 3.45 µm
- Focal Length: 6.8 mm (wide) to 136 mm (tele)
- F-Stop: 1.5 (wide) to 3.4 (tele)
- MOD: 1 cm (wide) to 90 cm (tele)
- Focus: Automatic and Manual
- Iris: Automatic and Manual
- Lens: Integrated
Quick Info for the The Imaging Source DMK 39GX265-Z20
| Camera Category: | Zoom |
|---|---|
| Camera Series: | Z Series |
| FPS: | 36 |
| Interface: | GigE Vision |
| Manufacturer: | The Imaging Source |
| Resolutions: | 3.1 MP |
| Scanning Mode: | Global Shutter |
