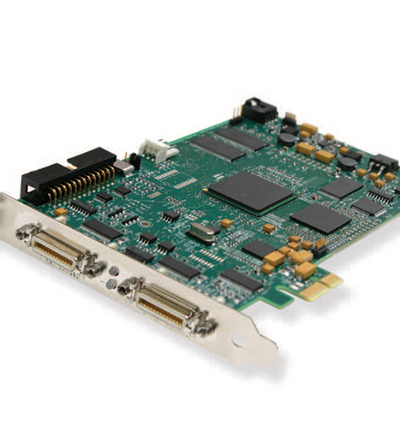

Dalsa X64-CL Express Frame Grabber
The X64-CL Express is a Camera Link frame grabber that is based on the PCI Express x1 interface – next generation bus interface technology for the host PCs. PCI-Express is a serial digital interface technology that is specifically designed to offer dedicated bandwidth to each plug-in device while reducing the PCB design complexity. The X64-CL
Express supports up to two independent Base or one Medium Camera Link™ color and/or monochrome cameras. Its low cost, combined with its ability to reformat input data from multi-tap area and linescan cameras in addition to its onboard FPGA based processing (including Bayer decoding and real-time shading correction) makes the X64-CL
Express an ideal solution to a wide variety of cost-sensitive applications where flexibility, performance and reliability cannot be compromised.
TECHNICAL INFORMATION:
| Buffer: | 32 MB |
|---|---|
| Camera Inputs: | 2 Base, or 1 Medium |
| Host Bus: | PCIe x1 |
| Interface : | Camera Link |
| Manufacturer: | Dalsa |
| Pixel Clock: | 85 MHz |
