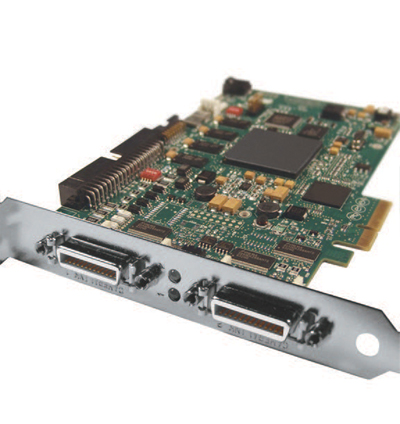

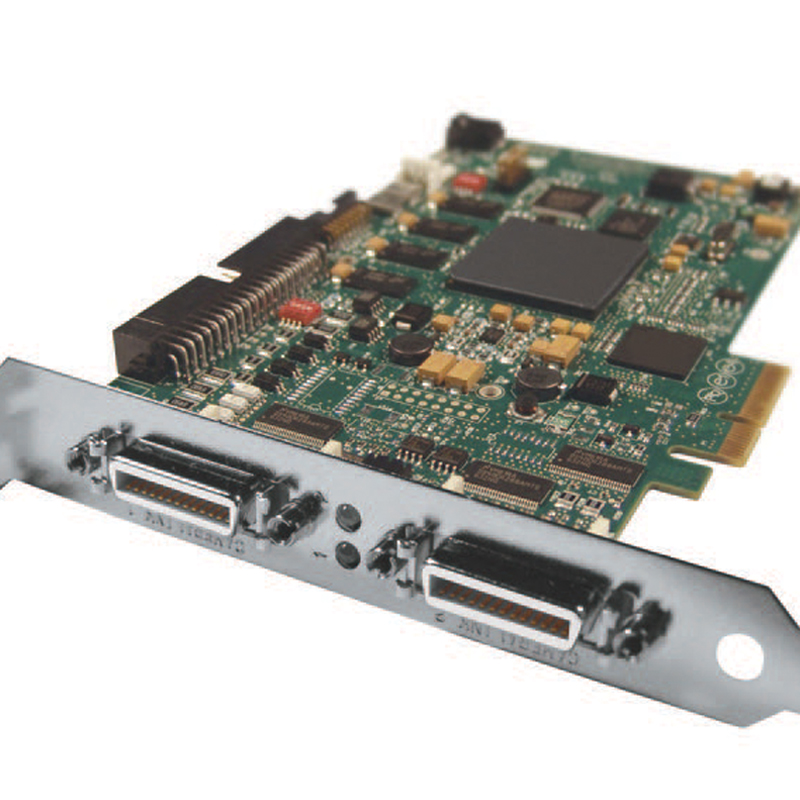

Dalsa Xcelera-CL PX4 Dual Frame Grabber
Need Help Finding the Best Frame Grabber for Your Solution? Call (631) 254-2600
- Half-length PCI Express x4 Board
- Simultaneous acquisition from two Camera Link Base or one Medium camera
- Simultaneous acquisition from area and linescan monochrome and RGB digital cameras
- Rapid image acquisition rates up to 255MB/s per input channel (510MB/s total)
- Image transfer to host memory at 1024MB/s
- Onboard processing including FPGA based processing engine
- Bayer decoding and real-time shading correction for each input
- ROHS compliant
TECHNICAL INFORMATION:
| Buffer: | 128 MB |
|---|---|
| Camera Inputs: | 2 Base, or 1 Medium |
| Host Bus: | PCIe x4 |
| Interface : | Camera Link |
| Manufacturer: | Dalsa |
| Pixel Clock: | 85 MHz |
