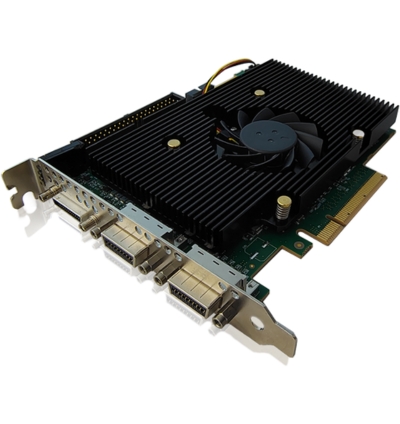

Dalsa Xtium3-CLHS PX8 Frame Grabber

The Xtium3-CLHS PX8 is a high-performance frame grabber designed for full 7-lane Camera Link HS operation, delivering a total input bandwidth of 72.2 Gbps through a dedicated CX4 connector. Supporting both copper and Active Optical Cables (AOC), it enables long-distance, flexible system layouts without compromising signal integrity or data throughput. Optimized for distributed image processing, the Xtium3-CLHS PX8 provides the speed, stability, and scalability required for advanced high-resolution and high-frame-rate imaging applications.

TECHNICAL INFORMATION:

• PCIe Gen4 x8 interface

• 7-lane Camera Link HS support (up to 72.187 Gbps total)

• 10.3125 Gbps bit rate per lane

• Automatic vertical spatial correction for TDI multi-plane cameras (up to 4 arrays) (unique)

• Monochrome 8–12 bit support (color in future driver)

• Real-time TDI multi-plane summation and averaging (up to 4 arrays) (unique)

• Flat field / flat line correction and pixel correction

• Lookup table (LUT) support

• Horizontal and vertical image flip

• Supports fixed or variable frame lengths for linescan acquisition

• Rotary encoder engine with averaging, drop/multiplier, count, and direction control

• 8 inputs and 12 outputs (Differential, LVTTL, Open Collector)

• Camera data forwarding to up to 5 additional boards

• Multi-board synchronization for simultaneous acquisition (unique)

• Supports Trigger-to-Image Reliability (T2IR) framework with full event notifications

Request a Quote
