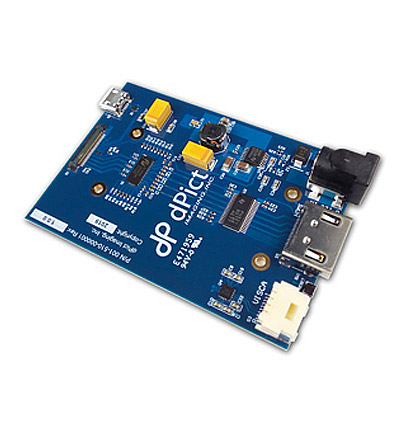

dPict Imaging DP-800H Interface Board
Get a Quote for the DP-800H
Please fill out the form below to request a quote. Fields marked with * are required.
Low-Cost HDMI Interface
The DP-800H is an interface board designed to provide HDMI video data from Sony 4K block cameras. It supports all video resolutions of Sony 4K block cameras and provides camera power, USB and VISCA support for complete camera integration.
HDMI Interface
The DP-800H interface board converts the TMDS data from the camera sensor to an HDMI 2.0 compatible output. The DP800H supports all camera resolutions and provides ESD protection.
Full Integration
The DP-800H solution offers complete board and camera control for custom OEM integration. A 30-pin micro-coax cable connects to the Sony block camera for video data transfer and camera communication. The DP-800H provides power to the Sony block and also supports the transfer of Sony VISCA commands through an optional USB cable.
DP-800H Features
- Interface board for Sony 4K block cameras
- Supports FCB-ER9500, FCB-EW9500, FCB-ES8230, FCB-ER8300, FCB-ER8530, and FCB-ER8550
- Low-cost HDMI output
- Supports all camera resolutions
- Supports HDMI 2.0 monitors
- Automatic camera resolution detection
- Power, USB and VISCA interface to camera
- Optional Camera Integration Kit
