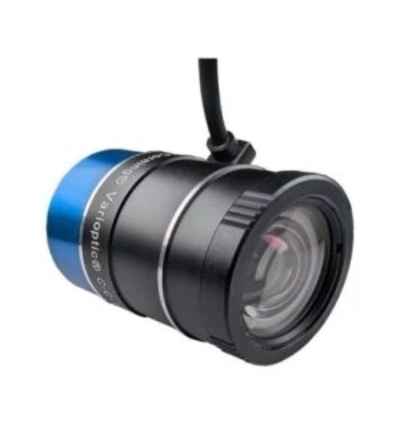

Corning® Varioptic® C-C-39N0-A1-120 C Mount Lens
.jpg)
Need Help Finding the Best Lens for Your Solution? Call (631) 254-2600
The C-C-Series C-C-39N0-A1-120 is an electronically controlled C-mount lens designed for precise, software-driven focus adjustment in machine vision applications. It includes the required onboard electronics, operates with a DC power supply, and supports focus control via RS232, I²C, or SPI. With a 12 mm effective focal length and compatibility with 1.1-inch sensors, it is designed for large-sensor machine vision applications.
TECHNICAL INFORMATION:
- Effective Focal Length: 12mm
- F-Number: 4.7
- Focus Range: 15 cm
- Image Circle Diameter: 17.6 mm
- Sensor Compatibility: 1.1"
- Pixel Size / Resolution: 2.74 µm / 20 MP
- DC Power Supply: 3.3–24 VDC
- Current Consumption: 10 to 50 mA
- Connector: 6-pin JST SHR-06V-S-B
- Communication: 32 Bits
| Focal Length: | 12mm |
|---|---|
| Format : | 1.1 |
| Manufacturer: | Corning® Varioptic® |
| Mount: | C Mount |
| Resolution : | 20 MP |
