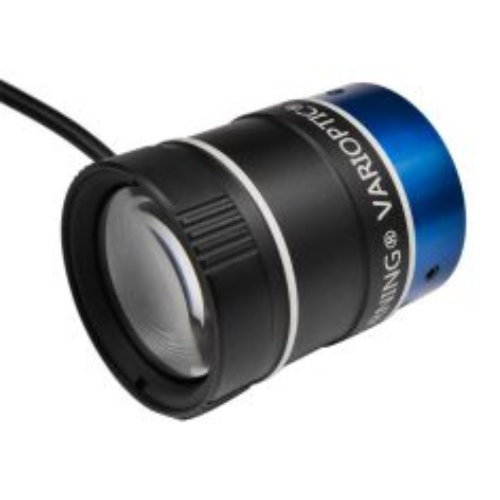

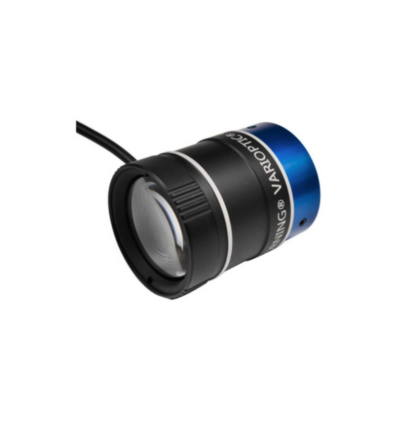

Corning® Varioptic® C-C-39N0-A1-160 C Mount Lens
Need Help Finding the Best Lens for Your Solution? Call (631) 254-2600
.png)
The C-C-39N0-A1-160 from Corning® Varioptic® is an electronically focus controllable C-Mount objective. It incorporates all necessary electronic components to drive the lens, and just needs a DC power supply; focus can be controlled through either an RS232, I²C or SPI input. With a 16 mm EFL, and compatible with 1.1" sensors, it is specifically designed for large sensor machine vision applications.
TECHNICAL INFORMATION:
- Effective Focal Length: 16mm
- F-Number: 3.8
- Focus Range: 15 cm to 8
- Image Circle Diameter: 17.6 mm
- Sensor Compatibility: 1.1"
- Pixel Size / Resolution: 2.74 µm/20MP
- DC Power Supply: 3.3 - 24 VDC
- Current Consumption: 10 to 50mA
- Connector: 6 pin JST SHR-06V-S-B
- Communication: 32 Bits
| Aperture: | 3.8 |
|---|---|
| Focal Length: | 16mm |
| Format : | 1.1 |
| Manufacturer: | Corning® Varioptic® |
| Mount: | C Mount |
| Resolution : | 20 MP< |
| Ruggedized: | -- |
