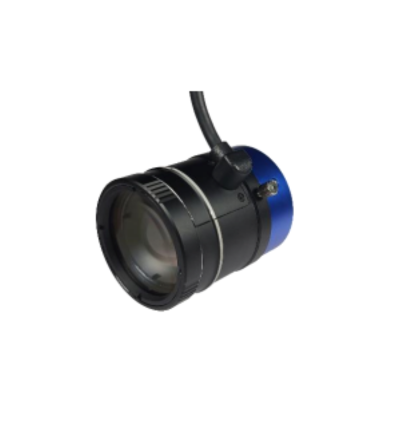

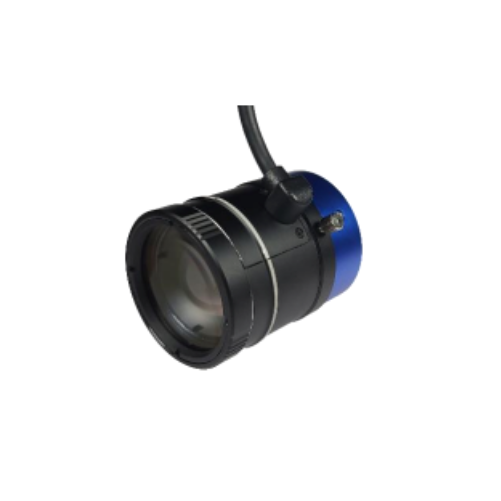

Corning® Varioptic® C-C-39N0-A1-250 C Mount Lens
Need Help Finding the Best Lens for Your Solution? Call (631) 254-2600
The Corning® Varioptic® C-C-39N0-A1-250 auto focus lens module is an electronically controllable focus C Mount lens. It incorporates the necessary electronic components to drive the lens with just a DC power supply. Focus can be controlled through either an RS232, I2C, Analog or SPI input. With a 25 mm effective focal length and 1.1" 20Mpx sensor compatibility, it is specifically designed for machine vision applications.
TECHNICAL INFORMATION:
- Effective Focal Length: 25 mm
- F-Number: 5 to 22
- Focus Range: 20 cm
- Image Circle Diameter: 17.6 mm
- Sensor Compatibility: 1.1"
- Pixel Size / Resolution: 2.74 µm / 20 MP
- DC Power Supply: 3.3–24 VDC
- Current Consumption: 10 to 50 mA
- Connector: 6-pin JST SHR-06V-S-B
- Communication: 32 Bits
| Focal Length: | 25mm |
|---|---|
| Format : | 1.1 |
| Manufacturer: | Corning® Varioptic® |
| Mount: | C Mount |
| Resolution : | 20 MP |
