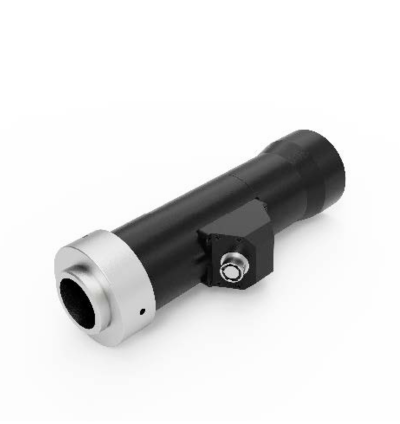

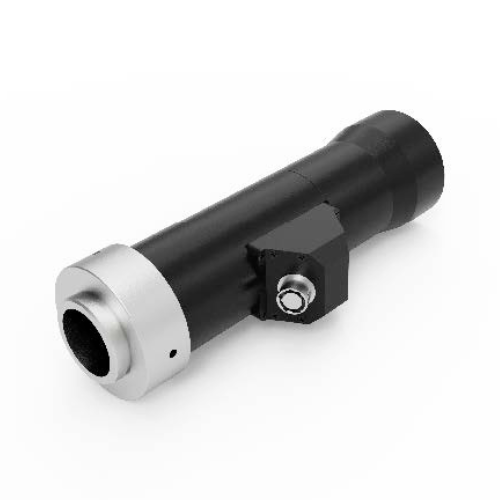

Corning® Varioptic® C-T-39N0-A1-010 C Mount Lens
Need Help Finding the Best Lens for Your Solution? Call (631) 254-2600
The C-T-39N0-A1-010 from Corning® Varioptic® is an electronically focused, controllable 1X Telecentric lens module. The C-T-Series incorporates all necessary electronic components to drive the lenses and only requires a DC power supply, focus can be controlled through either an RS232 or I²C input. This lens, compatible with C-mount cameras featuring sensor sizes up to 1” has been specifically designed for machine vision applications.
TECHNICAL INFORMATION:
- Mount: C-Mount
- Connector: 6-Pin
- Magnification: 1 X
- Image Circle Diameter: 16mm
- WD (mm): 102-118
- TV Distortion: = 0.1%
- Resolution: 5.5 µm
- Telecentricity: = 0.1
| Aperture: | 14.4 |
|---|---|
| Focal Length: | 16mm |
| Format : | 1 |
| Manufacturer: | Corning® Varioptic® |
| Mount: | C Mount |
| Resolution : | 8.9 MP |
