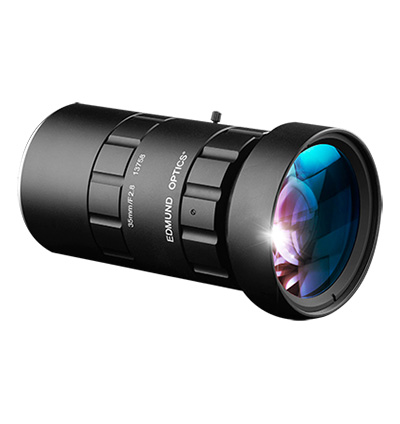

Edmund TechSpec LH Series F Mount Lens
Need Help Finding the Best Lens for Your Solution? Call (631) 254-2600
Ultra-High Resolution Large Format Lenses
- F-Mount Lens Optimized for 120 Megapixels, 2.2μm Pixel Size Sensors
- Compatible with APS-H (35.5mm) and 35mm Full Frame Sensors
TECHSPEC® LH Series Fixed Focal Length Lenses are designed for 120 Megapixel sensors in an APS-H format. The LH Series are the first large format lenses to truly support the 2.2μm pixel size featured on the Canon 120MP CMOS Sensor. These ultra-high resolution lenses work with APS-H sensors (35.5mm diagonal) and also on larger 35mm full frame sensors (43.3mm diagonal). TECHSPEC LH Series Fixed Focal Length Lenses provide a solution for the ultra-high resolution requirements of machine vision and many factory automation and display inspection applications.
TECHNICAL INFORMATION:
| Aperture: | 2.8 ~ 22 |
|---|---|
| Focal Length: | 35mm |
| Format : | - - |
| Manufacturer: | Edmund |
| Mount: | F Mount |
| Resolution : | - - |
| Ruggedized: | No |
