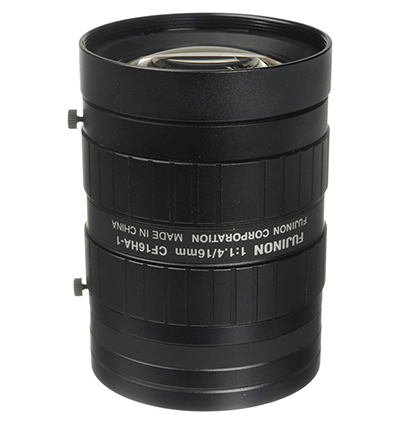

Fujinon CF16HA-1 C Mount Lens
Need Help Finding the Best Lens for Your Solution? Call (631) 254-2600
- High Resolution design, providing support for up to 1.5 megapixel camera resolution.
- Rear focusing system provides improved performance in macro photography.
- Wide-aperture (F1.4) design achieves clear images under low light intensity.
- Low-distortion design achieving accurate image input.
- Robust enclosure resistant to vibrations and shocks. Equipped with locking knobs for the iris and the focus.
TECHNICAL INFORMATION:
- Focus: Manual
- Iris: Manual
- Focal Length (mm): 16
- Iris Range: F1.4 ~ F22
- Back Focal Distance (in air) (mm): 17.99
- Exit Pupil Position (From Image Plane) (mm): -172
- Filter Thread (mm): M49 x 0.75
- Mass (g): 280
- Focusing Range (From Front Of The Lens) (m): ~ 0.1
- Angle of View:
1" - 43°36' x 33°24'
2/3" - 30°45' x 23°18'
1/2" - 22°37' x 17°04' - Object Dimensions at M.O.D. (H x V) (mm):
1" - 100 x 75
2/3" - 69 x 51
1/2" - 50 x 37 - Mount: C
| Aperture: | 1.4 ~ 22 |
|---|---|
| Focal Length: | 16mm |
| Format : | 1 |
| Manufacturer: | Fujinon |
| Model Type: | Fixed Focal |
| Mount: | C Mount |
| Product Life Cycle: | New Product |
| Resolution : | 1.5 MP < |
| Ruggedized: | -- |
