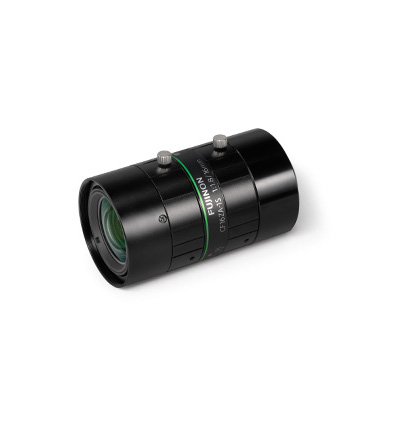

Fujinon CF16ZA-1S C Mount Lens
Need Help Finding the Best Lens for Your Solution? Call (631) 254-2600
The Fujinon CF16ZA-1S and the CF-ZA-1S 1" Lens family features 8 to 50mm focal lengths available, ultra-high resolution, very low distortion, for 1/3" to 1.1" sensor size, optimized for 2.5 to 3.45µm pixel size (5-12mp), ideal for use with sony imx304, 250, 253, 255, 264, 267, relative illumination 90% at f/4, minimal vignetting, read less, anti-shock/vibration design, compact construction, screw locks, short minimum working distance.
(1).png){kind=logo}
TECHNICAL INFORMATION:
| Focal length [mm] | 16 |
| Iris range (F. no) | F1.8-F16 |
| Angle of view | 47.3°×36.1° |
| Working Distance*1(mm) | ∞-100 |
| Operation of focus | Manual |
| Operation of iris | Manual |
| Filter thread [mm] | M37.5 x 0.5 |
| Mount | C-mount |
| Weight (approx.) [g] | 180 |
| Sensor size(std.) | 1.1"(2.5μm) |
| CRA (Chief Ray Angle) | 4.9 |
| TV distortion [%] | -0.80 |
| Dimension [mm] | φ39×67.6 |
| Aperture: | 1.8 ~ 16 |
|---|---|
| Focal Length: | 16mm |
| Format : | 1.1 |
| Manufacturer: | Fujinon |
| Mount: | C Mount |
| Resolution : | 12 MP |
| Ruggedized: | Yes |
