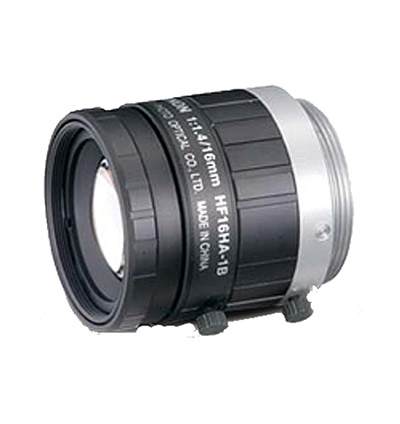

Fujinon HF16HA-1B C Mount Lens

• Design achieving the high resolution, supporting up to 1.5 mega pixel cameras.
• Designed for low distortion, enabling faithful image input.
• Compact, lightweight and robust design, supporting various systems.
• Focus & iris lock tab provided, supporting environments such as vibration.

TECHNICAL INFORMATION:

• Focus: Manual
• Iris: Manual
• Focal Length (mm): 16
• Iris Range: F1.4 ~ F16
• Back Focal Distance (in air) (mm): 15.15
• Exit Pupil Position (From Image Plane) (mm): -30.9
• Filter Thread (mm): M25.5 x 0.5
• Mass (g): 45
• Focusing Range (From Front Of The Lens) (m): ~ 0.1
• Angle of View:
  2/3" - 30^o45' x 23^o 18'
  1/2" - 22sup>o 37' x 17sup>o 04'
  1/3" - 17^o 04' x 12^o 50'
• Object Dimensions at M.O.D. (H x V) (mm):
  2/3" - 63 x 47
  1/2" - 46 x 34
  1/3" - 34 x 26
• Mount: C
