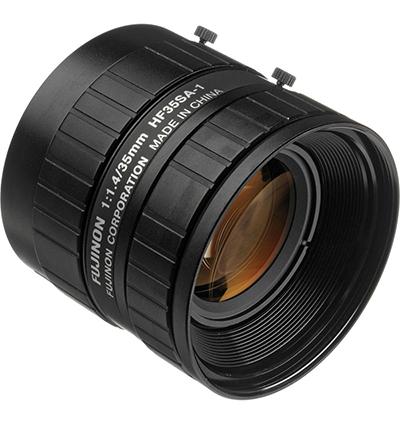

Fujinon HF35SA-1 C Mount Lens

• High Resolution design, providing support for up to 5 megapixel camera resolution.
• Wide-aperture (F1.4) design achieves clear images under low light intensity.
• Enhanced image recognition accuracy achieved by reduction of distortion and improvement of illumination uniformity.
• Robust enclosure resistant to vibrations and shocks. Equipped with locking knobs for the iris and the focus.

TECHNICAL INFORMATION:

• Focus: Manual
• Iris: Manual
• Focal Length (mm): 35
• Iris Range: F1.4 ~ F22
• Back Focal Distance (in air) (mm): 14.99
• Exit Pupil Position (From Image Plane) (mm): -37
• Filter Thread (mm): M49 x 0.75
• Mass (g): 185
• Focusing Range (From Front Of The Lens) (m): ~ 0.2
• Angle of View:
  2/3" - 14°20' x 10°46'
  1/2" - 10°27' x 7°51'
  1/3" - 7°51' x 5°53'
• Object Dimensions at M.O.D. (H x V) (mm):
  2/3" - 50 x 38
  1/2" - 37 x 27
  1/3" - 27 x 21
• Mount: C
