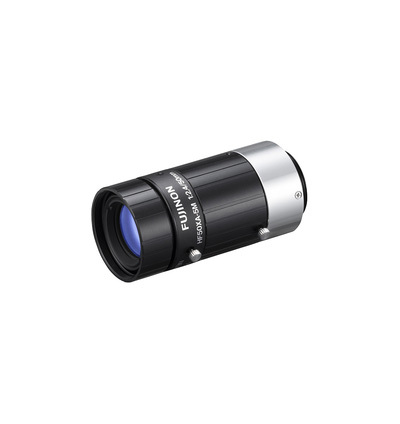

Fujinon HF50XA-5M C Mount Lens
Need Help Finding the Best Lens for Your Solution? Call (631) 254-2600
HF50XA-5M, a machine vision lens is used for product inspections and measurements at production lines. HF50XA-5M, has the focal length of 50mm, and is compatible with a 2/3-inch sensor·3.45 µm pixel pitch* (equivalent to 5 megapixels).
Despite being a telephoto lens, the “HF50XA-5M” achieves the MOD of 200mm to enable close-up shooting with a compact body measuring φ33mm in external diameter. In addition, the “HF50XA-5M” is equipped with anti-vibration and shock-resistant performance, which allows the lens to be used under a variety of conditions, such as installation site subject to large vibrations.
TECHNICAL INFORMATION:
| Focal length [mm] | 50mm |
| Aperture range (F no.) | F2.4-F16 |
| Angle of view | 10.4°×7.8° |
| Working Distance*1(mm) | ∞-200 |
| Operation of focus | Manual |
| Operation of iris | Manual |
| Filter thread [mm] | M30.5 × 0.5 |
| Mount | C-mount |
| Compatible sensor size (max.) | 2/3-inch |
| TV distortion [%] | -0.10 |
| Dimension [mm] | φ33×66.5 |
| Aperture: | 2.4 ~ 16 |
|---|---|
| Focal Length: | 50mm |
| Format : | 1.1 |
| Manufacturer: | Fujinon |
| Mount: | C Mount |
| Resolution : | 5 MP |
| Ruggedized: | -- |
