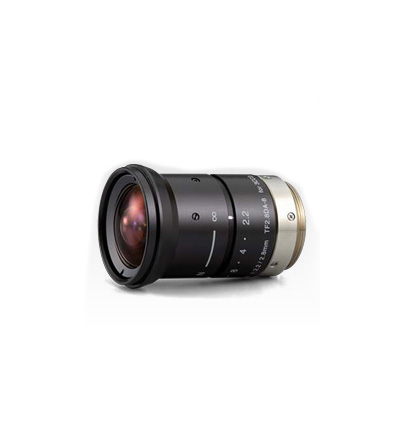

Fujinon TF2.8DA-8 C Mount Lens
Need Help Finding the Best Lens for Your Solution? Call (631) 254-2600
The Fujinon TF2.8DA-8 is a very high quality C-mount lens designed for the toughest industrial environments. It is a fixed wide angle 2.8mm with a maximum aperture of f/2.2. It shows a horizontal 89°. All functions, iris and focus, are manually controlled. In robotics and machine vision uses the lens can resolve enough detail for the highest grade of 3-CCD cameras. It can close-focus down to about 4".
TECHNICAL INFORMATION:
| Focal length [mm] | 2.8 mm |
| Iris range (F. no) | F2.2 - F16 |
| Angle of view | 89°×69° |
| Working Distance*1(mm) | ∞-100 |
| Operation of focus | Manual |
| Operation of iris | Manual |
| Mount | C-mount |
| Aperture: | 2.2 ~ 16 |
|---|---|
| Focal Length: | 2.8mm |
| Format : | 1/3 |
| Manufacturer: | Fujinon |
| Mount: | C Mount |
| Resolution : | 3 CCD |
| Ruggedized: | -- |
