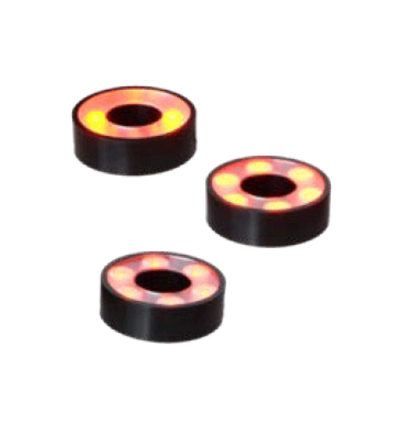

The HLDR3-100-DF Series offers precision LED lighting for long-distance applications, making it ideal for large workpieces, robotic inspections, and high-clearance imaging setups. With a 100 mm outer diameter and 44 mm inner diameter, this ring light delivers powerful illumination in a compact form.
Available in three beam angle configurations to suit different inspection needs:
-
HLDR3-100-DF-N: Narrow directivity for focused, long-range targeting
-
HLDR3-100-DF-M: Medium directivity for balanced spread and intensity
-
HLDR3-100-DF-W: Wide directivity for broad area coverage at moderate distances
Engineered for versatility, the HLDR3-100-DF Series adapts easily to varying working distances and lighting requirements in machine vision environments.
TECHNICAL INFORMATION:
The HLDR3-100-DF Series provides robust, high-intensity illumination tailored for long-distance and wide-area inspection tasks. With options for narrow, medium, and wide beam angles, these units offer flexible lighting solutions for a variety of machine vision and robotic applications.
LED Color: Variety
Peak Wavelength: 625 nm (typical)
Dimensions: Ø100 mm (outer), Ø44 mm (inner), Height: 31 mm
Input Voltage: 24 VDC
Power Consumption: 15 W (max.)
Polarity & Signal: Pin 1: (+), Pin 2: NC, Pin 3: (−)
Cable Length: 300 mm
Input Connector: SMR-03V-B
Case Material: Aluminum alloy
Cooling Method: Natural air cooling
Weight: HLDR3-100-DF-N: 340 g (max.)
HLDR3-100-DF-M: 340 g (max.)
HLDR3-100-DF-W: 310 g (max.)
Environmental Specifications
Operating Temperature & Humidity: 0 to 40°C; 20 to 85% RH (non-condensing)
Storage Temperature & Humidity: -20 to 60°C; 20 to 85% RH (non-condensing)
Certifications & Standards
Compliance: CE, UKCA, RoHS, REACH
Photobiological Safety (IEC 62471):
HLDR3-100-DF-N: Low Risk
HLDR3-100-DF-M: Low Risk
HLDR3-100-DF-W: Exempt
Included Accessories
User Manual
Quick Info for the HLDR3-100-DF
| Lighting Type: | Ring Lights (HLDR) |
|---|---|
| Manufacturer: | CCS Inc |
