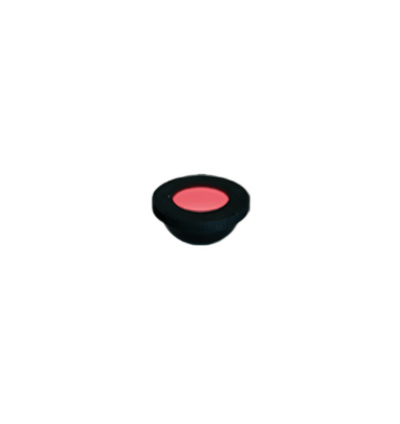

The HPD2-100 is a high-power LED dome light engineered for uniform illumination across reflective, curved, or uneven surfaces. With an outer diameter of 116 mm, an inner aperture of 66 mm, and a height of 57.4 mm, it delivers soft, diffused lighting that reduces shadows and glare—ideal for applications requiring consistent image clarity during inspection. Part of the advanced HPD2 Series, this model offers significantly higher brightness and broader compatibility across workpiece geometries.
TECHNICAL INFORMATION:
The HPD2-100 is a dome-style LED illumination unit that delivers stable, red diffused light optimized for precision visual inspection. Its 635 nm peak wavelength ensures strong contrast performance for surface defect detection and dimensional verification across various materials. The dome structure evenly disperses light to minimize shadows and provide a balanced visual field, especially when inspecting glossy or irregular objects.
LED Color: Variety
Peak Wavelength: 635 nm (typical)
Dimensions: Ø116 mm (outer), Ø66 mm (inner), Height: 57.4 mm
Input Voltage: 24 VDC
Power Consumption: 17 W (max.)
Polarity & Signal: Pin 1: (+), Pin 2: NC, Pin 3: (−)
Cable Length: 300 mm
Input Connector: SMR-03V-B
Case Material: Aluminum alloy, Resin
Cooling Method: Natural air cooling
Weight: 160 g (max.)
Environmental Specifications
Operating Temperature & Humidity: 0 to 40°C; 20 to 85% RH (non-condensing)
Storage Temperature & Humidity: -20 to 60°C; 20 to 85% RH (non-condensing)
Certifications & Standards
Compliance: CE, UKCA, RoHS
Photobiological Safety: IEC 62471 (Exempt Group)
Included Accessories
User Manual
Quick Info for the HPD2-100
| Lighting Type: | Dome Lights |
|---|---|
| Manufacturer: | CCS Inc |
