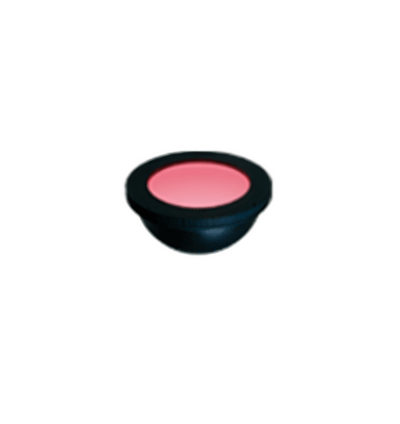

The HPD2-150 is a high-power dome light designed to deliver uniform, diffused red illumination for precision imaging in machine vision and automated inspection systems. With an outer diameter of 166 mm and a wide 116 mm inner aperture, this light unit is ideal for larger components or applications requiring broad, shadow-free coverage. Its dome geometry ensures consistent illumination across reflective, curved, or uneven surfaces, reducing specular highlights and improving image clarity in complex visual environments.
TECHNICAL INFORMATION:
The HPD2-150 is an LED dome light optimized for uniform surface inspection in machine vision environments where wide coverage and minimal glare are essential. Emitting at a peak wavelength of 635 nm, this light unit features a large aperture and hemispherical design to evenly distribute light across reflective, textured, or irregular workpieces—ensuring consistent contrast and high-quality imaging.
LED Color: Variety
Peak Wavelength: 635 nm (typical)
Dimensions: Ø166 mm (outer), Ø116 mm (inner), Height: 81.9 mm
Input Voltage: 24 VDC
Power Consumption: 27 W (max.)
Polarity & Signal: Pin 1: (+), Pin 2: NC, Pin 3: (−)
Cable Length: 300 mm
Input Connector: SMR-03V-B
Case Material: Aluminum alloy, Resin
Cooling Method: Natural air cooling
Weight: 285 g
Environmental Specifications
Operating Temperature & Humidity: 0 to 40°C; 20 to 85% RH (non-condensing)
Storage Temperature & Humidity: -20 to 60°C; 20 to 85% RH (non-condensing)
Certifications & Standards
Compliance: CE, UKCA, RoHS
Photobiological Safety: IEC 62471 (Exempt Group)
Included Accessories
User Manual
Quick Info for the HPD2-150
| Lighting Type: | Dome Lights |
|---|---|
| Manufacturer: | CCS Inc |
