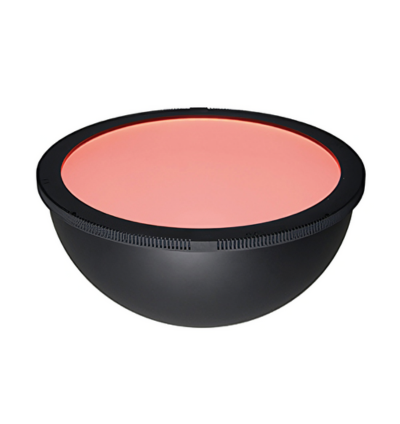

The HPD2-400 is a large-format dome light engineered for applications that demand exceptionally uniform illumination across wide inspection fields. With an outer diameter of 424 mm and an inner aperture of 360 mm, this light is ideal for imaging large or highly reflective components where traditional lighting may introduce glare or uneven brightness. Its dome-shaped design diffuses light evenly from all directions, eliminating shadows and enhancing contrast on curved or textured surfaces. The HPD2-400 is part of the HPD2 high-power dome series, delivering three times the brightness of previous models while maintaining ease of integration and consistent lighting quality for critical machine vision tasks.
TECHNICAL INFORMATION:
The HPD2-400 is a high-performance LED dome light designed for wide-area machine vision inspection. Operating at a peak wavelength of 635 nm, it ensures uniform, diffused illumination ideal for minimizing shadows and reflections on complex or glossy surfaces.
LED Color: Variety
Peak Wavelength: 635 nm (typical)
Dimensions: Ø424 mm (outer), Ø360 mm (inner), Height: 205 mm
Input Voltage: 24 VDC
Power Consumption: 45 W (max.)
Polarity & Signal: Pin 1: (+), Pin 2: NC, Pin 3: (−)
Cable Length: 300 mm
Input Connector: SMR-03V-B
Case Material: Aluminum alloy, Resin
Cooling Method: Natural air cooling
Weight: 1,300 g
Environmental Specifications
Operating Temperature & Humidity: 0 to 40°C; 20 to 85% RH (non-condensing)
Storage Temperature & Humidity: -20 to 60°C; 20 to 85% RH (non-condensing)
Certifications & Standards
Compliance: CE, UKCA, RoHS
Photobiological Safety: IEC 62471 (Exempt Group)
Included Accessories
User Manual
Quick Info for the HPD2-400
| Lighting Type: | Dome Lights |
|---|---|
| Manufacturer: | CCS Inc |
