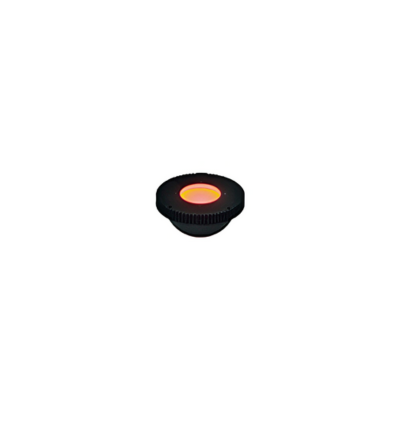

The HPD2-75 is a high-power dome light designed for uniform illumination in precision inspection environments. With an outer diameter of 91 mm, an inner diameter of 41 mm, and a height of 45.1 mm, this compact unit provides diffused, shadow-free lighting ideal for minimizing glare on reflective or curved surfaces. Its advanced optical design ensures consistent brightness across the field of view, making it well-suited for electronics inspection, component verification, and other machine vision applications that demand clarity and contrast.
TECHNICAL INFORMATION:
The HPD2-75 is an LED dome light optimized for high-uniformity illumination in demanding visual inspection applications. Emitting light at a typical peak wavelength of 635 nm, it delivers diffused, wide-area lighting that minimizes shadows and reflection artifacts on irregular or glossy surfaces—ideal for inspecting complex shapes or textured materials.
LED Color: Variety
Peak Wavelength: 635 nm (typical)
Dimensions: Ø91 mm (outer) x Ø41 mm (inner) x H 45.1 mm
Input Voltage: 24 VDC
Power Consumption: 17 W (max.)
Case Material: Aluminum alloy, Resin
Input Connector: SMR-03V-B
Cooling Method: Natural air cooling
Weight: 140 g
Environmental Specifications
Operating Temperature & Humidity: 0 to 40°C; 20 to 85% RH (non-condensing)
Storage Temperature & Humidity: -20 to 60°C; 20 to 85% RH (non-condensing)
Certifications & Standards
Compliance: CE, UKCA, RoHS
Photobiological Safety: IEC 62471 (Exempt Group)
Included Accessories
User Manual
Quick Info for the HPD2-75
| Lighting Type: | Dome Lights |
|---|---|
| Manufacturer: | CCS Inc |
