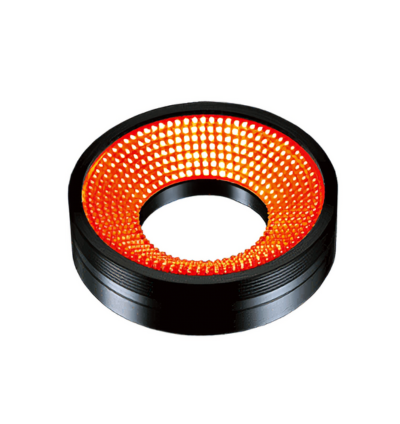

LDR2-120-WD

The LDR2-120-WD is a wide-dispersion LED ring light designed for uniform illumination across larger fields of view. With an outer diameter of 120 mm, a nominal inner diameter of 60 mm (actual LED aperture Ø56 mm), and a height of 31.5 mm, this light unit is ideal for applications requiring broad, even lighting across reflective, angled, or irregular surfaces.

Engineered with wide directional characteristics, the LDR2-120-WD reduces hotspotting and shadowing, enhancing image clarity and consistency in machine vision and inspection systems. Its form factor and performance make it especially well-suited for use in applications involving larger or uneven workpieces where stable illumination from multiple angles is critical.

TECHNICAL INFORMATION:

The LDR2-120-WD is a wide-angle LED ring light engineered for large-field, uniform illumination in machine vision applications. With an expanded aperture and wide directional characteristics, it delivers consistent lighting across complex or reflective surfaces, minimizing shadows and enhancing inspection accuracy.

LED Color: Variety
Peak Wavelength: 630 nm (typical)
Dimensions: Ø120 mm (outer), Ø60 mm (inner), Height: 31.5 mm
(*Actual inner diameter is Ø56 mm due to LED positioning)

Input Voltage: 24 VDC
Power Consumption: 24 W (max.)
Polarity & Signal: Pin 1: (+), Pin 2: NC, Pin 3: (−)
Cable Length: 300 mm
Input Connector: SMR-03V-B
Case Material: Aluminum alloy
Cooling Method: Natural air cooling
Weight: 510 g

Environmental Specifications
Operating Temperature & Humidity: 0 to 40°C; 20 to 85% RH (non-condensing)
Storage Temperature & Humidity: -20 to 60°C; 20 to 85% RH (non-condensing)

Certifications & Standards
Compliance: CE, UKCA, RoHS
Photobiological Safety: IEC 62471 (Exempt Group)

Included Accessories
Handling Precautions documentation

The LDR2-120-WD is ideal for applications that demand high-intensity, wide-area illumination with minimal variation, ensuring optimal imaging conditions for larger or misaligned workpieces.
