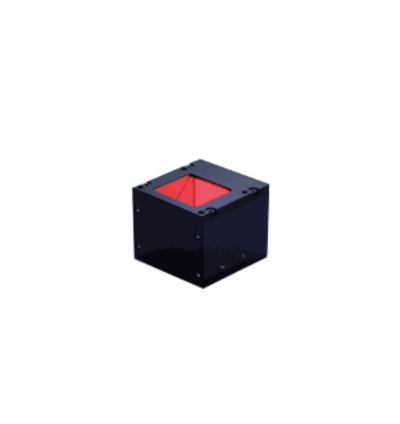

The LFV3-34(A) emits light and features a compact design measuring 46 x 48 x 38 mm, with a 34 x 34 mm light-emitting surface. Engineered for precision coaxial illumination, this unit directs uniform diffused light along the same optical path as the camera lens—making it ideal for inspecting mirror-finished or highly reflective workpieces. Its built-in half mirror ensures even lighting without glare or unevenness, and its space-saving footprint makes it suitable for integration into tight or confined imaging setups.
TECHNICAL INFORMATION:
The LFV3-34(A) is a LED coaxial light designed for uniform illumination of reflective and mirror-finished surfaces. Its compact, high-precision form factor ensures optimal integration in machine vision systems requiring consistent lighting along the camera’s optical axis.
- LED color: Red, White, Blue
- Peak wavelength: 635 nm typ.
- Dimensions: W 46 mm x D 48 mm x H 38 mm
- Input voltage: 24VDC
- Power consumption: 3.7 W max.
- Polarity & signal: 1: (+), 2: NC, 3: (-)
- Cable length: 300 mm
- Input connector: SMR-03V-B
- Case material: Aluminum alloy, Glass, Resin
- Cooling method: Natural air cooling
- Weight: 80 g max.
- Operating temperature and humidity: Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
- Storage temperature and humidity: Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
- Conformed standards: CE, UKCA, RoHS, IEC 62471(Exempt)
- Accessories: User Manual
Quick Info for the LFV3-34(A)
| Lighting Type: | Coaxial Lights |
|---|---|
| Manufacturer: | CCS Inc |
