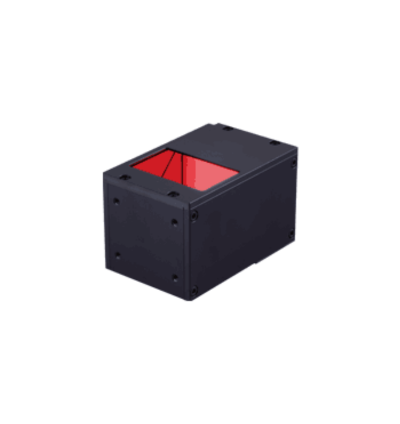

The LFV3-50(A) is a high-performance coaxial light unit designed to deliver uniform illumination for precision imaging tasks. Measuring 60 x 94 x 57 mm with a 52 x 52 mm light-emitting surface, this standard model excels at reducing shadows and reflections, especially on glossy or mirrored workpieces. Integrated with a half-mirror structure, the LFV3-50RD(A) aligns diffused light with the optical axis of the camera—ideal for applications requiring consistent coaxial illumination in machine vision and inspection systems.
TECHNICAL INFORMATION:
The LFV3-50RD(A) is a LED coaxial light engineered for high-precision surface inspection and imaging applications. Its integrated half-mirror design ensures that diffused illumination aligns perfectly with the optical axis of the camera, minimizing shadows and reflections on mirrored or glossy surfaces.
- LED color: Red, White, Blue
- Peak wavelength: 630 nm typ.
- Dimensions: W 60 mm x D 94 mm x H 57 mm
- Input voltage: 24VDC
- Power consumption: 8.1 W max.
- Polarity & signal: 1: (+), 2: NC, 3: (-)
- Cable length: 300 mm
- Input connector: SMR-03V-B
- Case material: Aluminum alloy, Glass
- Cooling method: Natural air cooling
- Weight: 335 g
- Operating temperature and humidity: Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
- Storage temperature and humidity: Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
- Conformed standards: CE, UKCA, RoHS, IEC 62471(Exempt)
- Accessories: User Manual
Quick Info for the LFV3-50(A)
| Lighting Type: | Coaxial Lights |
|---|---|
| Manufacturer: | CCS Inc |
