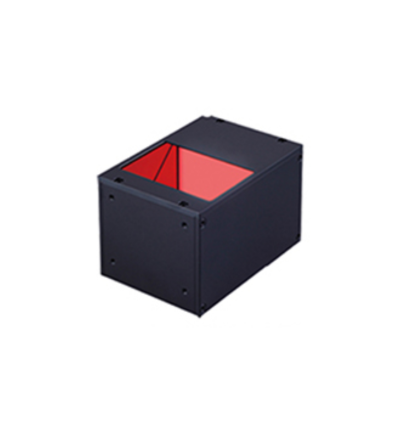

The LFV3-70(A) is a LED coaxial light designed for high-precision surface inspection and imaging of reflective or glossy materials. Measuring 84 x 120 x 78 mm, this unit features a 76 x 73 mm light-emitting surface that ensures uniform, shadow-free illumination by aligning diffused light along the same optical axis as the camera lens.
blue,red,white
TECHNICAL INFORMATION:
The LFV3-70(A) is a high-intensity coaxial LED light optimized for precision imaging tasks involving reflective or flat-surfaced components. With a typical peak wavelength of 630 nm, it delivers uniform, diffused illumination by projecting light along the same axis as the vision system—ideal for minimizing surface reflections during inspection.
- LED color: Red, White, Blue
- Peak wavelength: 630 nm typ.
- Dimensions: W 84 mm x D 120 mm x H 78 mm
- Input voltage: 24VDC
- Power consumption: 13 W max.
- Polarity & signal: 1: (+), 2: NC, 3: (-)
- Cable length: 300 mm
- Input connector: SMR-03V-B
- Case material: Aluminum alloy, Glass
- Cooling method: Natural air cooling
- Weight: 620 g
- Operating temperature and humidity: Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
- Storage temperature and humidity: Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
- Conformed standards: CE, UKCA, RoHS, IEC 62471(Exempt)
- Accessories: User Manual
Quick Info for the LFV3-70(A)
| Lighting Type: | Coaxial Lights |
|---|---|
| Manufacturer: | CCS Inc |
