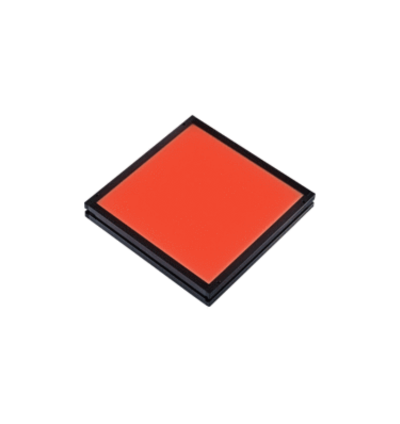

The TH2-100X100-PM is a high-directivity LED light unit engineered for precision illumination across large surface areas. With a wide 100 x 100 mm light-emitting surface and a compact 112 x 112 x 18 mm housing, this unit delivers uniform, intense lighting ideal for high-speed inspection lines.
blue,red,white
TECHNICAL INFORMATION:
The TH2-100X100-PM is a high-directivity LED light unit optimized for large-area machine vision applications. With a broad 100 x 100 mm light-emitting surface and uniform intensity, it provides high-contrast illumination ideal for detailed inspections on high-speed production lines or expansive parts.
- LED color: Red, White, Blue
- Peak wavelength: 635 nm typ.
- Dimensions: W 112 mm x D 112 mm x H 18 mm
- Input voltage: 24VDC
- Power consumption: 26 W max.
- Polarity & signal: 1: (+), 2: NC, 3: (-)
- Cable length: 300 mm
- Case material: Aluminum alloy, resin
- Input connector: SMR-03V-B
- Conformed standards: CE, UKCA, RoHS, IEC 62471(Exempt)
- Operating temperature and humidity: Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
- Storage temperature and humidity: Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
- Cooling method: Natural air cooling
- Weight: 240 g max.
- Accessories: User Manual
Quick Info for the TH2-100X100-PM
| Lighting Type: | Flat Lights |
|---|---|
| Manufacturer: | CCS Inc |
