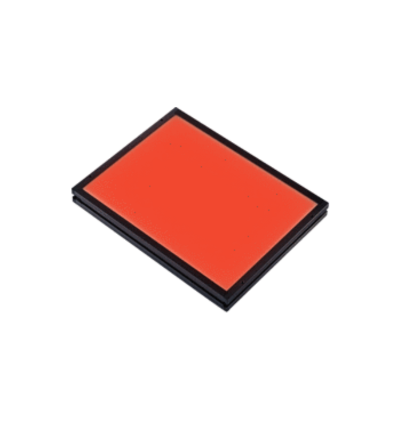

The TH2-140X105-PM is a high-directivity LED light unit designed for large-area illumination in precision inspection tasks. With a wide light-emitting surface of 140 × 105 mm, this model ensures bright, uniform output across expansive workpieces. Its compact housing (152 × 117 × 18 mm) enables integration into inspection systems where space is limited but powerful, focused lighting is required.
TECHNICAL INFORMATION:
The TH2-140X105-PM is a high-directivity LED panel light designed for uniform illumination across large inspection areas. Engineered for integration into high-speed imaging systems, this model offers a broad light-emitting surface in a low-profile form factor, delivering precise and stable lighting ideal for machine vision applications.
- LED color: Red, White, Blue
- Peak wavelength: 635 nm typ.
- Dimensions: W 152 mm x D 117 mm x H 18 mm
- Input voltage: 24VDC
- Power consumption: 28 W max.
- Polarity & signal: 1: (+), 2: NC, 3: (-)
- Cable length: 300 mm
- Case material: Aluminum alloy, resin
- Input connector: SMR-03V-B
- Conformed standards: CE, UKCA, RoHS, IEC 62471(Exempt)
- Operating temperature and humidity: Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
- Storage temperature and humidity: Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
- Cooling method: Natural air cooling
- Weight: 320 g max.
- Accessories: User Manual
Quick Info for the TH2-140X105-PM
| Lighting Type: | Flat Lights |
|---|---|
| Manufacturer: | CCS Inc |
