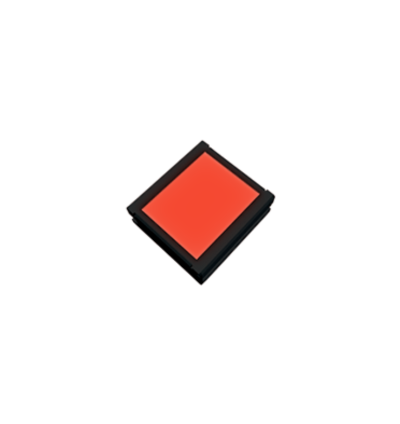

The TH2-43X35-PM is a high-directivity LED light unit designed for precision lighting in fast-paced inspection environments. With a compact body size of 51 × 47 × 18 mm and a light-emitting surface measuring 43 × 35 mm, this unit provides focused, uniform illumination ideal for enhancing contrast in surface inspection and small-part detection.
blue,red,white
TECHNICAL INFORMATION:
The TH2-43X35-PM is a high-directivity LED light unit engineered for focused, uniform illumination in machine vision and inspection systems. With a rectangular emission area and enhanced brightness, it delivers sharp contrast and clarity for imaging tasks in fast-paced or space-limited environments.
- LED color: Red, White, Blue
- Peak wavelength: 635 nm typ.
- Dimensions: W 51 mm x D 47 mm x H 18 mm
- Input voltage: 24VDC
- Power consumption: 5.7 W max.
- Polarity & signal: 1: (+), 2: NC, 3: (-)
- Cable length: 300 mm
- Case material: Aluminum alloy, resin
- Input connector: SMR-03V-B
- Conformed standards: CE, UKCA, RoHS, IEC 62471(Exempt)
- Operating temperature and humidity: Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
- Storage temperature and humidity: Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
- Cooling method: Natural air cooling
- Weight: 60 g max.
- Accessories: User Manual
Quick Info for the TH2-43X35-PM
| Lighting Type: | Flat Lights |
|---|---|
| Manufacturer: | CCS Inc |
