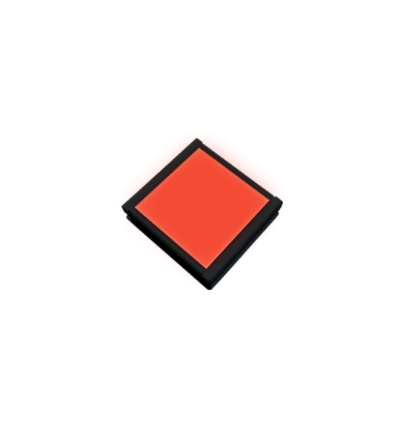

The TH2-51X51-PM is a high-directivity LED light unit designed for precise illumination in machine vision and inspection systems. With a compact body measuring 59 × 63 × 18 mm and a 51 × 51 mm light-emitting surface, it delivers focused, high-intensity lighting ideal for detecting fine details and enhancing image contrast.
blue,red,white
TECHNICAL INFORMATION:
The TH2-51X51-PM is a high-directivity LED light designed for machine vision tasks requiring concentrated, uniform illumination across a broad surface area. Its robust build and elevated brightness make it ideal for high-speed inspection systems and applications where image clarity is critical.
- LED color: Red, White, Blue
- Peak wavelength: 635 nm typ.
- Dimensions: W 59 mm x D 63 mm x H 18 mm
- Input voltage: 24VDC
- Power consumption: 7.3 W max.
- Polarity & signal: 1: (+), 2: NC, 3: (-)
- Cable length: 300 mm
- Case material: Aluminum alloy, resin
- Input connector: SMR-03V-B
- Conformed standards: CE, UKCA, RoHS, IEC 62471(Exempt)
- Operating temperature and humidity: Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
- Storage temperature and humidity: Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
- Cooling method: Natural air cooling
- Weight: 80 g max.
- Accessories: User Manual
"
Quick Info for the TH2-51X51-PM
| Manufacturer: | CCS Inc |
|---|
