Vision to Reality

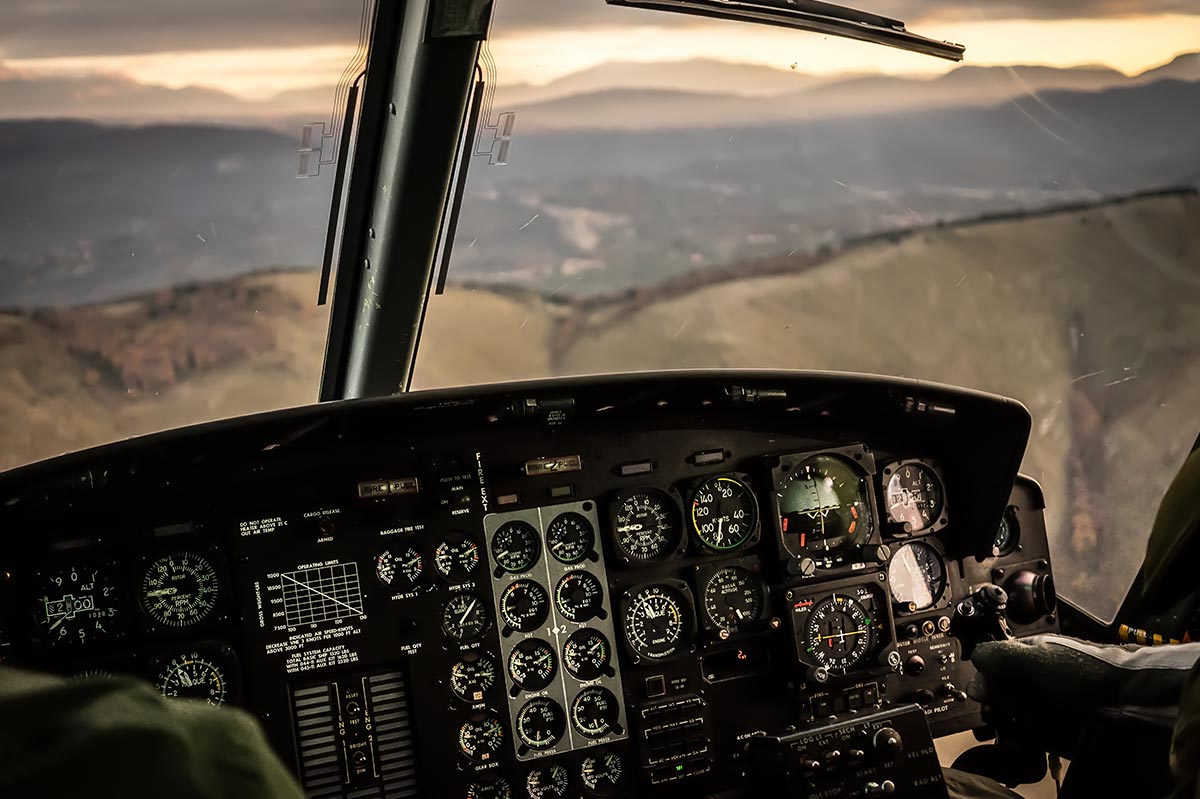

Retrofitting Rescue Helicopters with HD Cockpit Cameras
An aviation contractor supporting search-and-rescue missions across North America faced a critical upgrade challenge. Their existing cockpit cameras, installed across a fleet of 500+ helicopters, were VGA-resolution and failed to deliver usable video. Additionally, tight spaces, analog infrastructure, and vibration made modernization difficult.
STEMMER IMAGING USA brought both the technology and strategy needed to make the transition work.
The Challenge
Every inch matters in airborne systems. The team needed a camera that could capture cockpit LCD readouts clearly, include audio capture, and fit into tight legacy enclosures; all while interfacing with an analog system architecture.
Project success meant:
- Replacing VGA cameras without enlarging the system footprint
- Delivering audio-video capture in a single integrated solution
- Adapting digital video to legacy analog infrastructure
- Surviving high vibration and temperature variations
The Approach
STEMMER IMAGING USA helped the customer assess multiple options, including a full-featured block camera. But when that proved too large, we pivoted to a more agile solution and:
1. Specified a 12MP board-level camera with audio input and compact dimensions
2. Collaborated on a signal conversion strategy to enable analog compatibility
3. Provided field support during testing and evaluation
4. Helped the customer plan for a phased deployment aligned with aircraft maintenance windows
The Results
What began as a retrofit became a showcase for targeted engineering:
- Achieved 10x image resolution improvement
- Enabled IP-based capture without structural changes to the cockpit
- Added audio functionality to improve post-flight review and compliance
- Project positioned for full-fleet integration across 500+ aircraft
Why It Matters
Upgrading vision systems in aircraft isn’t about adding pixels; it’s about delivering clarity under constraint. STEMMER IMAGING USA’s deep understanding of system requirements helped bridge analog history with digital capability.
Insights from the Field
Pilots and review teams immediately noticed clearer data visualization. The addition of synchronized audio also improved training and incident documentation.
Looking Forward
Future aircraft designs from this partner may include vision from the start. STEMMER IMAGING USA is already engaged in early discussions to support broader modernization initiatives in avionics.
