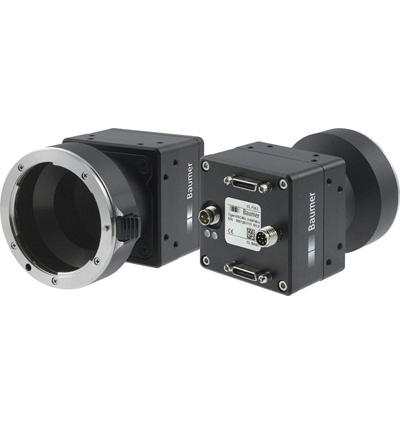

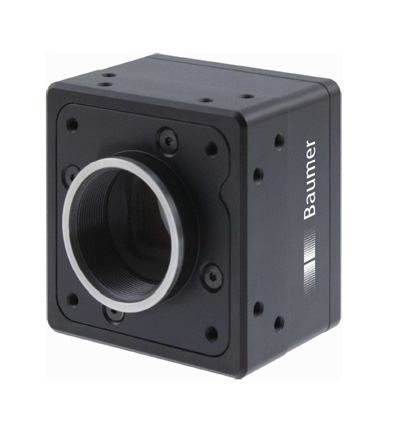

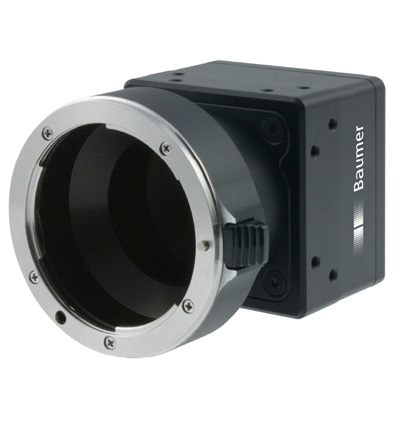

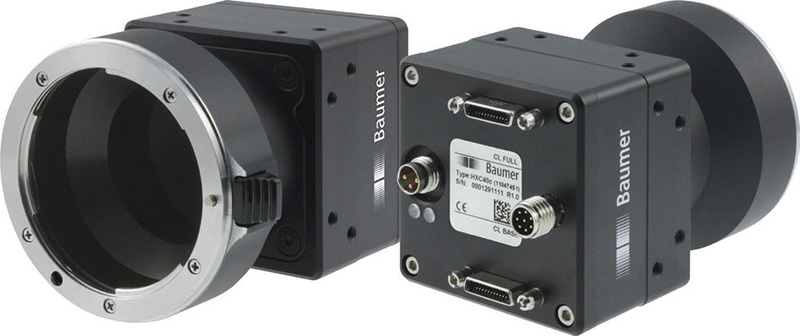

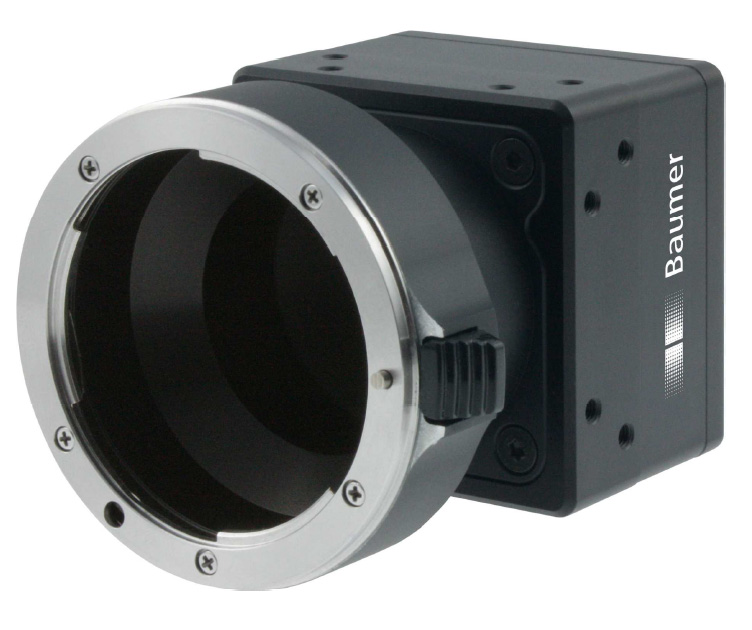

Baumer HXC20 Camera

Baumer HXC20 Camera - Digital Monochrome Progressive Scan With Camera Link^® interface

Maximum speed and resolution – the cameras of our HX series are based on the most up-to-date CMOS sensors with global shutter technology. Their high sensitivity enables shorter inspection times.

FEATURES:

• CameraLink^® Full progressive scan CMOS camera
• 2048 x 1088 pixel with up to 337 full frames per second
• Excellent image quality
• Global shutter architecture for minimized motion blur
• Low noise due to correlated double sampling (CDS)
• Binning, subsampling and true partial scan function (ROI) for increased frame rates
• High Dynamic Range (HDR) image acquisition
• External synchronization via industrial compliant process interface (trigger / flash)
• Integrated supplementary function for flexible integration
• Sequence function up to 231-1 frames per sequence
• Integrated 256 MByte RAM for temporarily image data buffering
• Compact and lightweight aluminum housing
• Two standard 26 pin Mini-CameraLink^® connectors
• Support for CameraLink® Base, Medium, Full and 10 tap configurations
• Camera parameter programmable via configuration tool for Windows
• Baumer-GAPI: Flexible, generic software interface for Windows / Linux

TECHNICAL INFORMATION:

• Sensor: CMOSIS CMV2000
• Type: 2/3" global shutter CMOS
• Resolution: 2048 × 1088 px
• Frame rate max.: 337 fps
• Exposure time: 0,02 ... 1000 ms
• Image formats:
  Full Frame, 2048 × 1088 px, max.337.0 fps
  Binning 2×1, 1024 × 1088 px, max. 337.0 fps
  Subsampling 2×2, 1024 × 544 px, max. 664.0 fps
• Pixel formats: Mono 8, Mono10, Mono12
• Analog controls: Gain (0 … 12 dB), Offset (0 … 255 LSB)
• Color models: Mono
• Internal buffer: 256 MB
• Synchronization: free running, trigger
• Trigger sources: Hardware, Software, FrameGrabber
• Digital inputs: 3 output lines
• Data interface: CameraLink^® Full, Connector: 2 x Standard SDR26 (Mini CL)
• Process interface: M8 / 8 pins
• Power supply: M8 / 3 pins
• Material: housing: aluminum
• Lens mount: C-mount, F-mount
• Width: 52 mm
• Height: 52 mm
• Depth: 37 mm
• Weight: 185 g
• Voltage supply range +Vs: 9,6 ... 30 VDC
• Power consumption: approx. 5.5 Watts
