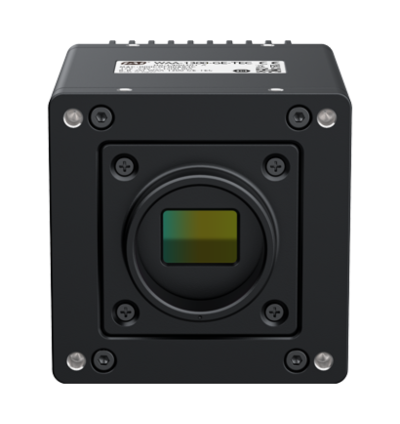

JAI WAA-1300-GE-TEC Camera

The JAI WAA-1300-GE-TEC is a high-performance Visible + SWIR area scan camera built for industrial imaging applications that require broad spectral sensitivity, stable image quality, and efficient system integration. With 1.3 MP resolution, frame rates up to 90 fps, and sensitivity across the visible and short-wave infrared range, this camera helps capture material details and contrast beyond conventional imaging. Integrated ThermoElectric Cooling supports lower sensor noise, improved signal stability, and consistent performance over time, while the GigE Vision interface enables reliable data transfer without specialized frame grabber hardware.

TECHNICAL INFORMATION:

Megapixels: 1.3 MP
Resolution: 1280 x 1024
Frame Rate: Up to 90 FPS
Sensor Type: InGaAs
Spectrum: Visible + SWIR
Spectral Response: 400–1800 nm
Pixel Size: 5 µm
Output Format: Mono8 / Mono10 / Mono12
Data Interface: GigE Vision
Cooling: Integrated ThermoElectric Cooling
Lens Mount: C-mount
Gain Control: 0 dB to 42 dB
Image Correction: FFC, DPC, black level, gamma control
Image Enhancement: Brightness, contrast, denoise, enhancement control, LUT
Camera Functions: Binning, image flip, ROI
