The Imaging Source DFM 47GR2020 Camera

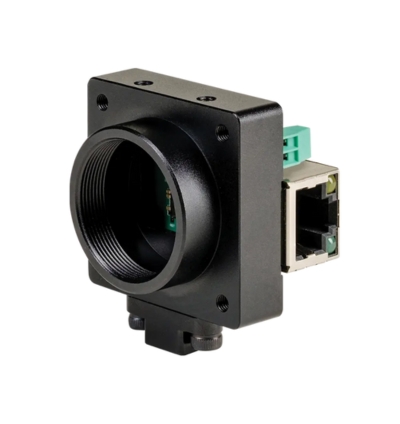

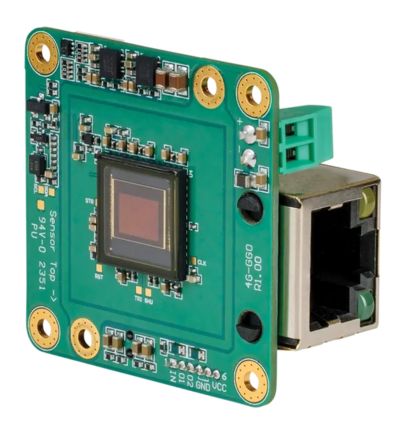

The DFM 47GR2020 from the 47G Series is an ultra-compact color board camera engineered for high-resolution embedded and industrial vision systems, featuring a 1/1.8? onsemi AR2020 CMOS sensor that delivers 5,120 × 3,840 (19.7 MP) resolution at up to 6 fps, with ultra-small 1.4 µm × 1.4 µm pixels for capturing fine detail. It incorporates a GigE (RJ-45) interface for robust network integration, rolling shutter readout, trigger and I/O inputs for synchronized capture, and is housed in a remarkably compact 39 × 40 × 33 mm footprint — making it ideal for space-constrained OEM or embedded applications.

TECHNICAL INFORMATION:

• 47G Series Color Board Camera
• GigE Interface (RJ45)
• ¹/_1.8 inch OnSemi CMOS AR2020 Sensor
• 5,120×3,840 (19.7 MP), up to 6 fps
• Pixel Size: H: 1.4 µm, V: 1.4 µm
• Rolling Shutter
• Trigger and I/O Inputs
• Only 39×40×33 mm
