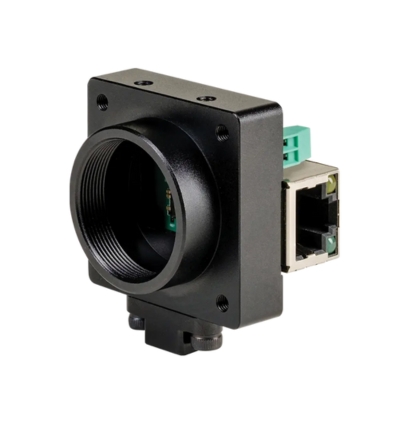

The Imaging Source DFM 47GX568 Camera

The DFM 47GX568 from the 47G Series is a high-precision color board camera built for compact industrial and embedded vision systems, featuring a 1/1.8? Sony Pregius S IMX568 sensor that delivers 5 MP (2,448 × 2,048) resolution at up to 24 fps with 2.74 µm × 2.74 µm pixels for excellent light sensitivity and image clarity. It incorporates a GigE (RJ-45) interface, global shutter operation, trigger and I/O inputs for synchronized capture, all within an ultra-compact 39 × 40 × 33 mm footprint (or approximately 36 × 38 × 17 mm in some board-variants) — enabling seamless integration into space-constrained OEM systems.

TECHNICAL INFORMATION:

• 47G Series Color Board Camera
• GigE Interface (RJ45)
• ¹/_1.8 inch Sony Pregius S IMX568 Sensor
• 2,448×2,048 (5 MP), up to 24 fps
• Pixel Size: H: 2.74 µm, V: 2.74 µm
• Global Shutter
• Trigger and I/O Inputs
• Only 39×40×33 mm
