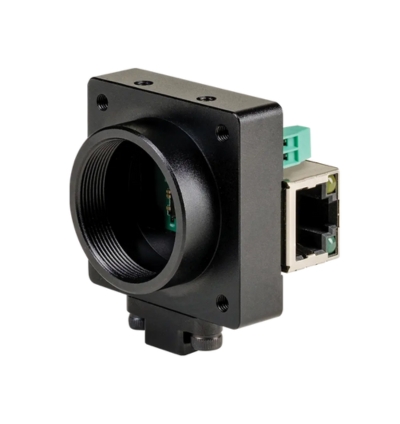

The Imaging Source DMM 47GR0521 Camera

The DMM 47GR0521 from The Imaging Source combines compact design with dependable GigE performance for a wide range of monochrome imaging applications. Equipped with the 1/2.5" onsemi CMOS AR0521 sensor, this 5 MP board camera captures 2,592 × 1,944 resolution at up to 22 fps with excellent sharpness and contrast. Its 2.2 µm pixel size and rolling shutter architecture provide high sensitivity and smooth imaging for static or moderately dynamic scenes. Measuring only 39 × 40 × 33 mm, the DMM 47GR0521 integrates easily into embedded and industrial systems, offering trigger and I/O inputs for precise control and reliable synchronization.

TECHNICAL INFORMATION:

• 47G Series Monochrome Board Camera
• GigE Interface (RJ45)
• ¹/_2.5 inch onsemi CMOS AR0521 Sensor
• 2,592×1,944 (5 MP), up to 22 fps
• Pixel Size: H: 2.2 µm, V: 2.2 µm
• Rolling Shutter
• Trigger and I/O Inputs
• Only 39×40×33 mm
