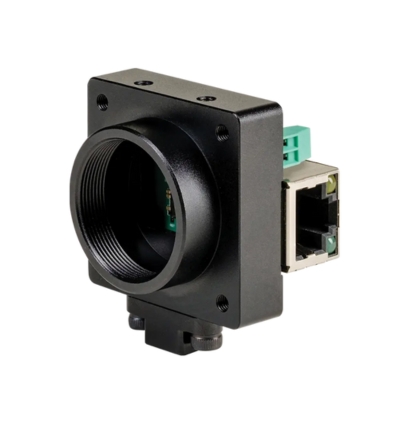

The Imaging Source DMM 47GX568 Camera

The DMM 47GX568 from The Imaging Source delivers outstanding monochrome image quality and precision within a compact 39 × 40 × 33 mm housing. Powered by the 1/1.8" Sony Pregius S IMX568 global shutter sensor, this GigE board camera captures 2,448 × 2,048 (5 MP) resolution at up to 24 fps with exceptional dynamic range and low noise. The larger 2.74 µm pixel size enhances sensitivity for applications requiring accurate detail in challenging lighting conditions. With integrated trigger and I/O inputs, the DMM 47GX568 enables precise synchronization and flexible system integration, making it an ideal choice for industrial inspection, automation, and embedded vision designs.

TECHNICAL INFORMATION:

• 47G Series Monochrome Board Camera
• GigE Interface (RJ45)
• ¹/_1.8 inch Sony Pregius S IMX568 Sensor
• 2,448×2,048 (5 MP), up to 24 fps
• Pixel Size: H: 2.74 µm, V: 2.74 µm
• Global Shutter
• Trigger and I/O Inputs
• Only 39×40×33 mm

Request a Quote
