Tamron M118FM50 C Mount Lens

Request a Quote

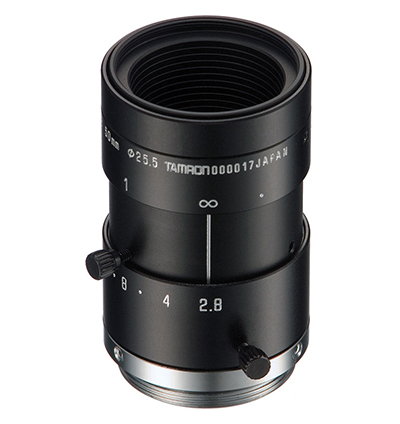

Product image of Tamron M118FM50
Product Photos
Need Help Finding the Best Lens for Your Solution? Call (631) 254-2600
Product image of Tamron M118FM50
With the objective of further strengthening its product line-up and thus enabling Tamron to precisely meet the varied needs of customers, Tamron has now developed high-resolution fixed focal lenses for industrial applications that can be used with 1/1.8" mega-pixel CCDs. These lenses are compatible with 1/1.8" and 1/2" mega-pixel CCD factory automation and machine vision cameras. By reducing the minimum focus distance, these lenses offer a broader shooting range. With the new lenses, imaging for most applications can be achieved without attaching a close-up extension ring. This helps to boost system reliability and lower overall costs. The minimum focus distance for the 16mm lens has been reduced from 0.3 m to 0.1 m. For the 25mm lens, it has been reduced from 0.25 m to 0.1 m, and for the 50mm lens, from 0.5 m to 0.2 m.

TECHNICAL INFORMATION:

  • Focal Length: 50mm
  • Iris Range: F/2.8-22
  • Iris Operation: Manual w/Lock
  • Focus Operation: Manual w/Lock
  • Mount: C
  • 1/1.8" Angle of View (horizontal/vertical): 8.3° x 6.2 °
  • 1/2" Angle of View (horizontal/vertical): 7.3° x 5.5 °
  • TV Distortion: -0.1% or less
  • Filter Size: M25.5 P=0.5mm
  • Minimum Object Distance: 0.2m
  • Weight: 52 grams

Request a Quote

Quick Info for the Tamron M118FM50 C Mount Lens
Aperture: 2.8 ~ 22
Focal Length: 50mm
Format : 1/1.8
Manufacturer: Tamron
Model Type: Fixed Focal
Mount: C Mount
Product Life Cycle: New Product
Resolution : 3 MP
Ruggedized: --
Download PDFDownload
Product PDF
