Canon 19µm Full HS CMOS Sensor

19μm Ultra High Sensitivity CMOS Sensor

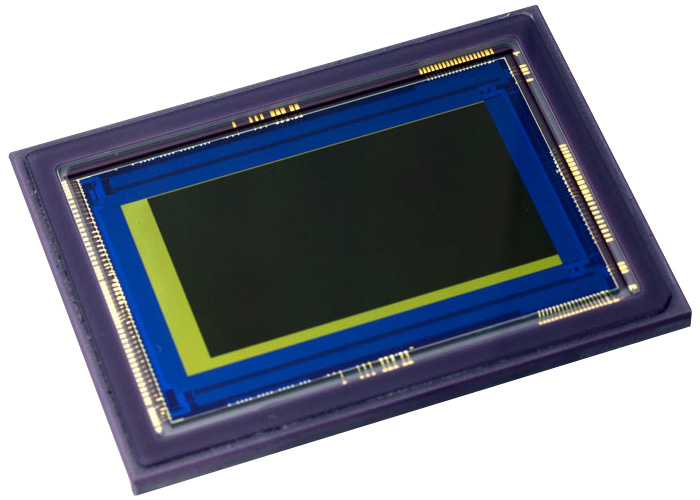

 The 35MMFHDXSCA CMOS sensor delivers high-sensitivity, low-noise imaging performance, even in exceptionally low-light environments. The sensor’s pixels and readout circuitry employ new technologies that reduce noise, which tends to increase as pixel size increases. High sensitivity and increased well depth have been achieved through a larger pixel size of 19μm x 19μm (square) with proprietary device design technologies.

Wide Angle of View

With a full readout resolution of 2160×1280, as compared to the 1920×1080 imaging area of full HD, this CMOS sensor enables use in applications requiring large image capture areas such as astronomy. This added resolution also provides an option for a 6:4 aspect ratio (1920×1280) needed in surveillance applications and an option for a 1:1 aspect ratio (1280×1280) needed in industrial applications.

Readout Position and Frame Rate Control

The readout start position can be specified to allow flexibility in both frame rate and resolution depending on the application and required performance level. Moreover, when a high frame rate is not required, vertical blanking can reduce power consumption.

Low Dark Current

Canon has incorporated technology within this sensor to reduce dark current during long exposure times. This enables clean imaging over long exposures where only the faintest of light is present.

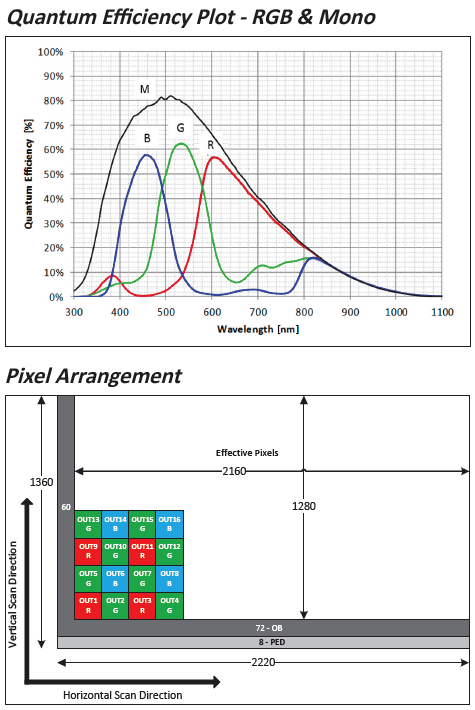

TECHNICAL INFORMATION:

• Filter Type: RGB
• Sensitivity (Green): 1,100,000 e/lx/sec @gainx1
• Sensor Size: 41.04mm x 24.32mm
• Number of Effective Pixels: 2160h x 1280v
• Pixel Size: 19μm x 19μm
• Quantum Efficiency (Green, 525nm): 62%
• Scan Type: Progressive Scan
• Shutter: Rolling Shutter
• Resistor Control Type: Serial Communication
• Package Type: 180 pin ceramic PGA
• Saturation: 61,000e @gain x1
• Conversion Gain: 5.6 μV/e @gain x1
• Dark Random Noise (Room Temp): 2.2e rms @gain x16
• Dark Current (-20° C): 0.003 e/sec
• Dark Current (Room Temp): 60 e/sec
• Drive Frequency: 16 ch x 21 MHz (Recommended)
• Readout: Simultaneous reading of vertical 4 lines
• Output Format: 16 Channel Analog Outputs (Differential)
• Column Amplifier Gains: x1, x2, x4, x8, x16
• Power Consumption: 1.7W Typ. (@ all pixels readout at 98 fps)
• Power Supply Voltage: 5.0 V, 3.3 V
• Package Size: 60.9mm x 44.6mm x 3.57mm
