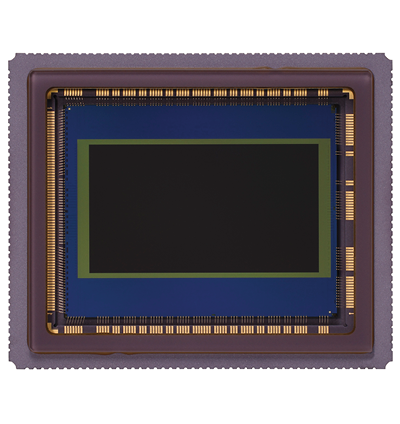

Canon LI5070SA CMOS Sensor

The Canon LI5070SA is a 10 Megapixel CMOS sensor engineered for high-end security and cinema applications. Featuring a Super 35mm optical format and a square 6.4 µm × 6.4 µm pixel structure, it delivers exceptional image quality with high sensitivity and low distortion. Its global shutter architecture ensures accurate capture of fast-moving subjects, making it ideal for demanding environments that require both resolution and real-time performance. Available in RGB configuration, the LI5070SA provides the precision and reliability required for professional-grade imaging systems.

TECHNICAL INFORMATION:

Technical Specifications – Canon LI5070SA CMOS Sensor

• Resolution: 10 Megapixels

• Effective Pixel Count: 4288 (H) × 2398 (V)

• Pixel Pitch: 6.4 µm

• Sensor Dimensions: 27.4 mm × 15.3 mm (Super 35mm format)

• Shutter Type: Global shutter

• Color Filter: RGB

• Sensitivity: 90,000 e?/lx/sec

• Dark Random Noise: 2.0 e? rms @ 18 dB gain

• Maximum Frame Rate: 60 fps
