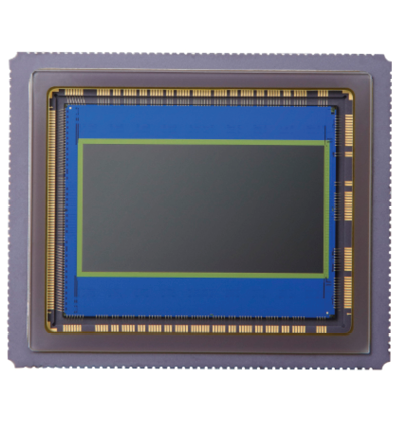

Canon LI7080SA CMOS Sensor

The Canon LI7080SA is a high-performance CMOS sensor designed for advanced imaging applications, offering 4.5K resolution at 120 fps through high-speed signal readout technology. Featuring a Super 35mm optical format and 6.4 µm × 6.4 µm pixel size, this sensor combines rolling shutter architecture with exceptional image quality—making it an ideal choice for professional cinema, broadcast, and high-end security systems.

TECHNICAL INFORMATION:

Technical Specifications – Canon LI7080SA CMOS Sensor

• Filter Type: RGB (on-chip color filter)

• Optical Format: Larger than Super 35mm (29.0 mm × 15.4 mm)

• Effective Resolution: 4536 (H) × 2400 (V)

• Pixel Size: 6.4 µm × 6.4 µm

• Output Channels: 30 data lanes, 2 clock lanes

• Output Interface: LVDS, 840 Mbps @ 14-bit

• Recommended Clock Frequency: 60 MHz

• Full-Frame Readout Speed: 120 fps (all pixels)

• Analog Gain Settings: -6 dB, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB

• Saturation Capacity: 82,000 e? (typical @ 120 fps)

• Sensitivity: 85,000 e?/lx/sec (typical)

• Dark Random Noise: 2.2 e? rms @ 18 dB gain

• Dark Current: 33 e?/sec (typical) @ 60°C, 18 dB gain

• Power Consumption: 2.3 W (typical) @ 120 fps

• Power Supply Voltages: 3.5 V, 3.3 V, 2.62 V, 2.5 V, 1.8 V, 1.6 V, -1.2 V
