Canon 120MXS 120 MP Sensor Evaluation Kit
Need Help Finding the Best Sensor for Your Solution? Call (631) 254-2600
Assess sensor performance for your applications with the Canon 120MXS 120 MP CMOS Sensor Evaluation Kit.

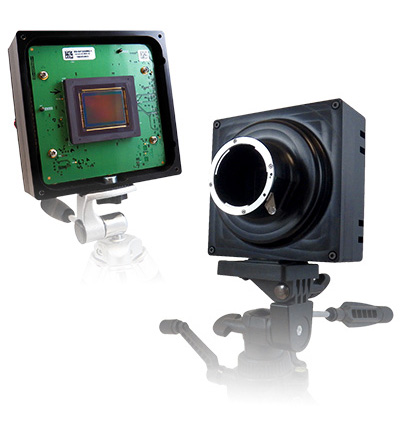

The Evaluation Kit includes a camera with a pre-installed Monochrome, RGB or RGB-NIR (near-infrared) Canon 120MXS 120 MP sensor of your choice with raw data serial output via a USB 3.1 (Gen 1) interface. Featuring an open architecture design, the kit gives developers the option to embed processing and software with the on-board ARM and FPGA*.
The Canon 120MXS 120 MP CMOS Sensor Evaluation Kit includes:
- Evaluation camera with pre-installed sensor (mono, RGB, or RGB-NIR )
- Accessory package for out-of-the-box operation (quick start guide, power supply, all necessary cables)
- Embedded software to setup the sensor, acquire image data, and communicate over USB 3.1 interface with any USB 3 compliant UI
- PC-based UI application available for download to communicate with the camera
- Sensor board design files source code*
- VHDL code for the FPGA*
*Source code and VHDL code only available upon request with an NDA
NOTE: A Lens is not included in this kit.
Speak with a STEMMER IMAGING USA imaging expert about suitable lens options that will help you to effectively evaluate sensor performance for your applications.
TECHNICAL INFORMATION:
| Sensor Specs | |||
|---|---|---|---|
| Color Filter | RGB | RGB-NIR | Monochrome |
| Sensitivity (e/lx/sec) | 10,000 | 10,000 | 20,000 |
| Resolution | 122 megapixels | ||
| Effective Pixels | 13272h x 9176v | ||
| Sensor Size | APS-H (29.22mm x 20.20mm) | ||
| Pixel Size | 2.2µm x 2.2µm | ||
| Maximum Frame Rate (All Pixels) | 9.4 fps | ||
| Shutter Type | Rolling | ||
| Dark Random Noise | 2.3e rms @ gain x8, Room Temperature | ||
| Evaluation Kit Camera Specs | |||
| FPGA | Intel Arria 10 | ||
| FPGA Processor | Dual Core A9 ARM | ||
| Interface | USB 3.1 Gen 1 | ||
| AIA Vision Protocol | |||
| Programmable General Purpose I/O | 4 External FPGA GPIO Pins | ||
| 3 Opto-Isolated Input Pins | |||
| Use as trigger / exposure inputs | |||
| Bit Rate/Maximum Frame Rate | 8-Bit: 2 fps | ||
| 12-Bit: 1.3 fps | |||
| ISP Functions | Region of Interest | ||
| Exposure Control | |||
| Framerate Control | |||
| Bad Pixel Replacement | |||
| Trigger Mode | External | ||
| Debug / Registry Setting Control | Peek / Poke Commands | ||
| Lens Mount | F-Mount | ||
| Power Input | 12 VDC | ||
| Hardware / Software Requirements | Windows 10 64-bit PC with USB 3.0 port available GenTL Viewer Software (provided) MityCAM-120MXS Camera Head (provided) Camera Power Supply (provided) USB 3.0 Cable (provided) GPIO/Serial Cable (provided) |
||
Quick Info for the Canon 120MXS
| Manufacturer: | Canon |
|---|---|
| Scan: | Evaluation Board |
